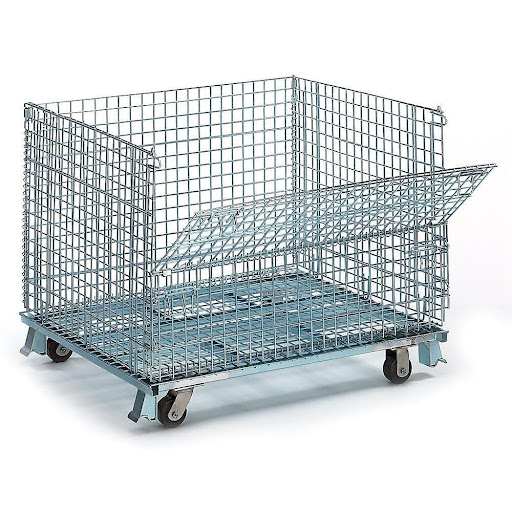

Collapsible Mesh Containers
Collapsible Mesh Containers
Materials and Construction
Model | External Dimensions (mm) | Wire Diameter (mm) | Grid Interval (mm) | Feet Height (mm) | Load Capacity (kg) |
|---|---|---|---|---|---|
B-1 | 800 x 500 x 540 | 5.0 / 6.0 | 50 x 50 / 50 x 100 | 100 | 500 |
B-2 | 800 x 600 x 640 | 5.0 / 6.0 | 50 x 50 / 50 x 100 | 100 | 800 |
C-1 | 1000 x 800 x 840 | 5.0 / 6.0 | 50 x 50 / 50 x 100 | 100 | 1000 |
C-2 | 1200 x 1000 x 890 | 5.0 / 6.0 | 50 x 50 / 50 x 100 | 100 | 1000 |
Key Features
Durability: Designed to withstand heavy loads and harsh conditions.
Versatility: Suitable for various storage needs with adjustable grid intervals and wire diameters.
Mobility:Optional caster wheels for easy maneuverability.
Security: Secure locking mechanism for safe storage.
Applications
- Warehouse Storage:
- Retail Displays
- Industrial Use
- Agricultural Sector
Specifications
- Wire Diameter: 4.0 mm to 6.0 mm
- Mesh Pattern: Standard grid size of 50 mm x 100 mm
- Customization: Custom sizes and grid patterns available
Installation & Maintenance
- Installation: Easy assembly with no special tools required.
- Maintenance: Regular cleaning and inspection recommended to ensure longevity.
Safety and Compliance
Complies with international safety standards for material handling.
Load capacities must be adhered to for safe use.
